Linear Grill

 Customers can avail from us a comprehensive range of Linear Grilland damper. The offered product is fabricated using supreme grade raw materials, that are obtained from relevant merchants of the markets. Moreover, the product is precisely developed and designed in accordance to the set industrial quality standard, so the we can go the the specification and requirements of our esteemed clients.



Features:



  • Well equipped
  • Composed with the aid of latest high-tech machinery
  • For smooth functioning
  • Appropriate circulation of air
  • Easy installation procedure
  • User friendly
  • Low electricity consumption
  • Available in market leading price


Specifications:

  • Types: Single deflection
  • Double deflection: Materials
  • Extruded aluminium, mild steel or stainless steel
  • Finish: Powder coated, anodized, emulsion painted, primer coated
  • Standard 20mm blade spacing






Other Information

  • Pay Mode Terms: T/T (Bank Transfer)


Air Grill

 The Supply Air Grill are being manufactured by us which are widely used in HVAC industries. These grille are having fixed bar. These louvers are having capacity of defection upto 15 deg.. These grille can be fabricated in one way direction or two way direction.


Features:

  • Designed with Nylon Bushes for efficient, smooth and quiet operation & to avoid rattling noise.
  • Aerofoil shaped blades
  • Deflection blades are adjustable manually and individually
  • Standard 20mm blade spacing
  • Single/Double deflection with high Quality anodizing or powder coating.
  • With or Without Opposed blade Dampers


Specifications:

  • M.O.C. : Aluminum Section/M.S.,SS
  • Finish : Powder Coated
  • Stemmed Height : 100 mm, 150 mm, 200 mm, 300mm
  • Attachment : Oppose blade type damper (Optional)
  •




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)


Egg Crate Grilles

 Egg Crate Grilles are available in aluminium construction and are extensively used in lobbies and rest rooms. They are also used in ventilation application. Grilles are provided with removable core as a standard feature to facilate easy cleaning. Volume control damper can be optional.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

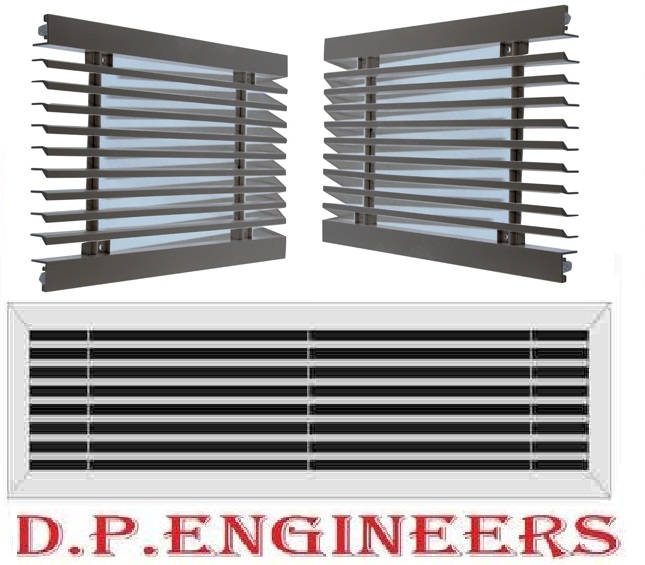

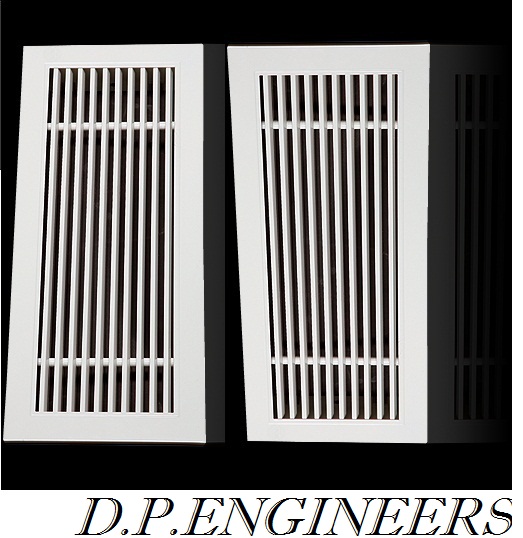

Linear Bar Grilles

 Linear Bar Grilles and Registers covers a wide range for supply and return air distribution of HVAC systems and are suitable for ceiling, floor, sill and sidewall applications. They are selected for their pleasing continuous, line architectural, appearance and are designed for fan tops, grilles of swimming pools, ventilation outlets and many other applications.



Linear Bar Grilles have been designed to satisfy air diffusion and engineering requirement as well as architectural specifications. Grill can also be supplied with non standard frames,border as per the customer requirement.



The Aluminum Linear Bar Grilles and registers are engineered for supply and return air distribution in heating, cooling, and ventilating applications, and are designed for sidewall, floor, sill, and ceiling applications. This series offers three different deflection angles (0 degree, 15 degree and 30 degree), three different border widths, wall mounted models, core only models (CO), and a wide variety of frame and bar spacing styles.



Material Used In Manufacturing:


Extruded Aluminum Sections



Finishes


  • Eproxy Polyester Powder Coated (Broken off White/Pure White/Ivory).
  •
  • Natural Anodized
  • Other powder coating finishes available on request.




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

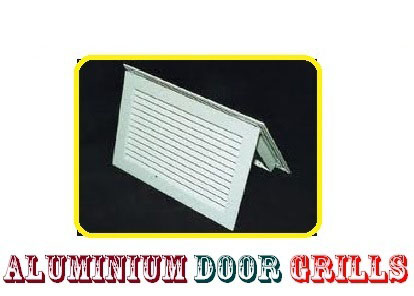

Aluminum Door Grills

 We are recognized as one the leading manufacturers and suppliers of a comprehensive range of Aluminum Door Grills. For the fabrication of these grills, we make use of premium quality material and follow advanced manufacturing techniques. In addition to this, the offered grill is highly appreciated by clients due to its robust construction, longer service life and dimensional accuracy. Furthermore, clients can avail the offered grills from us at industry leading prices.


Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

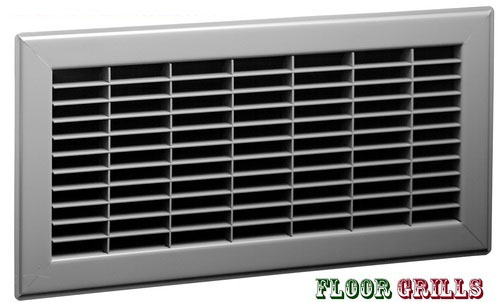

Floor Grills

 Clients can avail from us high quality Floor Grills that are widely acknowledged among clients all across the nation. For the fabrication of these grills, we use superior quality raw material and sophisticated technology. The offered grill is designed and developed under the supervision of our skilled professionals as per the varied requirements of clients. Due to their sturdy construction, high tensile strength, corrosion resistance and excellent finish, these are highly admired by clients that are spread all across the nation.




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)


Curved Grilles

 Application:




Air supply or air return in Air-conditioning, ventilating and heating systems.



Mounting:



Overlapped in sidewall or in false ceiling by means of hidden fixing systems.



Implementation:



Extruded aluminium construction. Frames with flat frontal face of 30mm or 20mm and individually adjustable blades to regulate the throw of air in the pitch of 20mm gap. Blades available horizontally or vertically in front side only. Available in all standard or non-standard sizes with or without collar dampers.



Standard Finishes:

Natural aluminium, anodized or powder coated in standard RAL white colours

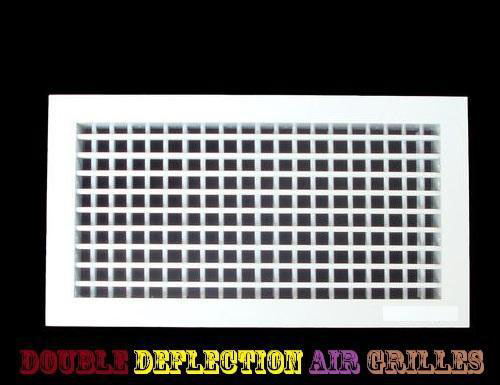

Double Deflection Air Grille

Introduction:

Double Deflection grilles are suitable for well, ceiling and duct applications. Grilles vanes in double deflection are individually adjustable. Grilles can also be supplied with non-standard frames/boarders as per the customer requirements.



Fixings:


Countersunk screw holes through flange concealed finings-see optional extras.



Technical Data:


All single and double deflection blades are fitted through nylon bearings, which ensure that the blades remain firm once set in position and also removes the possibility of noise created at higher velocity through the grille. Sizing monogram is opposite.



Packaging:


Each grille is individually wrapped to ensure the product reaches you in perfect condition.



Optional Extras:


Non standard sizes available on request Painting to any BS or RAL color of your choice. FX/SD-Fixed blade (45° single reflection), single deflection CF-Concealed spring fixings.



Features


  • The blades are fixed by wire and adjustable from 0-180 degree, giving required controllable airflow direction.
  • Choice of Vertical or Horizontal front blades fitted to customer requirements.
  • Anodized or powder coated white, colour RAL 9010, 9016, other colours on request.
  • Frame is curved.
  • Fixing with SFR or visible screws mounting.



Material Used In Manufacturing:


Extruded Aluminium Sections/M.S. Sheets.



Finishes:


  • Eproxy Polyster Powder Coated (Broken off White/Pure White/Ivory)
  • Natural Anodised
  • Other powder coating finishes available on request.
  • Border and blades are anodized, aluminum
  • Painted Finish-to any RAL or BS color.


Non Vision Grilles

 Application:



Air supply or air return in Air-conditioning, ventilating and heating systems.



Mounting:



Overlapped insidewall or in false ceiling by means of hidden fixing systems.



Implementation:



Extruded aluminium construction. Frames with flat frontal face of 20mm or 30mm and individually adjustable blades to regulate the throw of air in the pitch of 20mm gap. Available in front horizontal back side vertical bars, both side adjustable louvers. Front horizontal with fixed bars and rear vertical with adjustable blades also available. All standard or non standard sizes, with or without collar dampers can be made.



Standard Finishes:

Natural aluminium, anodized or powder coated in standard RAL white colours.

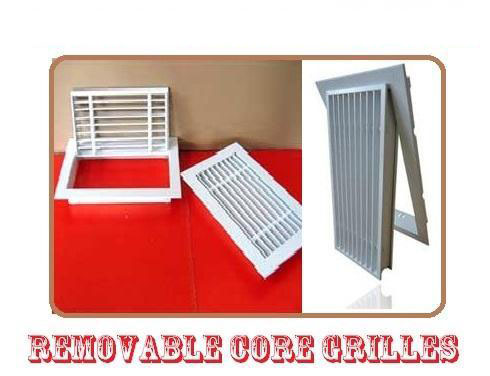

Removable Core Grilles

 Removable Core Grilles



Application
:



Air supply or air return in Air-conditioning, Ventilating and Heating systems.



Mounting:



Overlapped in false ceiling by means of hidden fixing systems or directly on to the visible circular ducts.



Implementation:



Circular frame with flat frontal face of 20 mm and inner blades are cut to match the circular area. Available in 0°, 15", 30° or 45° deflections as well as in one way or two way types. Removeble cores are also made on request. For air supply screw operated butterfly dampers will be fixed on the rear side of the grille. Constructed in high grade aluminium.



Standard Available Sizes:



Available in sizes from 0150 to 0500mm in 50mm increments.



Standard Finishes:

Natural aluminium, anodized or powder coated in standard RAL white colours.




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)


Fixed Bar Grilles

 We present to our clients, a wide range of Fixed Linear Bar Grilles. These Fixed Linear Bar Grilles are made up of finest quality material. Also, the high reliability and durability of these Fixed Linear Bar Grilles attracts the clients most. We manufacture these Fixed Linear Bar Grilles as per the world class standards and parameters.



Features:


  • Deflection bars are fixed and are parallel to the long dimension
  • Diffusers are supplied in length of up to 2000 mm in single section
  • Ideal for continuous length application
  • Available with horizontal vanes inclined at 0,15,30,45 deg and a spacing of 13 mm.
  • Multiple sections are supplied with alignment strips on the frame & sub frame to provide superior positive alignment.
  • Standard finishes are natural anodized or power coat broken white



Applications:


  • These grilles are ideal for return air, exhaust air and fresh air intake in sheltered location
  • If used for fresh air. The grille must be located in sheltered location



Construction:


  • Supply, Return, and Exhaust grills for all ventilation and air -Conditioning applications.
  • These grilles are ideal for residential and commercial refrigerated air conditioning evaporative cooling are heating applications.


Triangle Grilles

 Application:

Air supply or air return in-conditioning, ventilating and heating systems.

Mounting:

Overlapped in false ceiling by means of hidden fixing systems or by means of bridge type concealed fixing.

Implementation:

Extruded aluminium construction. Frames with flat frontal face of 16mm, 20mm or 30mm and inner blades of 0°, 15º, 30º, or 45º deflections. Available with any degree corners with or without end flanges and also in standard or non standard sizes.

Standard Finishes:

Natural aluminium, anodized or powder coated in standard RAL white colours



Two Way Linear Grilles

 Application:



Air supply or air return in-conditioning, ventilating and heating systems.



Mounting:



Overlapped in false ceiling by means of hidden fixing systems or by means of bridge type concealed fixing.



Implementation:



Extruded aluminium construction. Frames with flat frontal face of 16mm,20mm or 30mm and inner blades of 0°, 15º, 30º, or 45º deflections. Available with any degree corners with or without end flanges and also in standard or non standard sizes.



Standard Finishes:

Natural aluminium, anodized or powder coated in standard RAL white colours




Other Information

  • Pay Mode Terms: T/T (Bank Transfer)

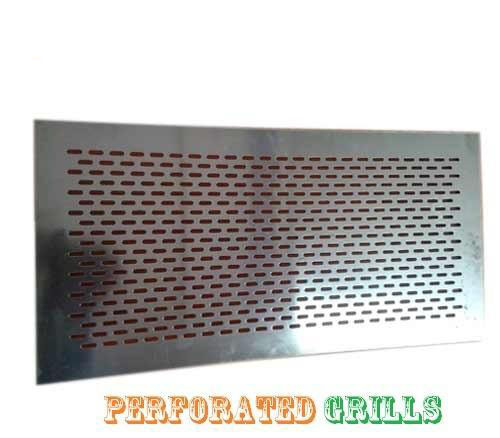

Perforated Grills

 We are involved in offering quality range of Perforated Grills that meets international quality standards. We fabricate Perforated Grills using graded aluminum, brass, copper, stainless steel,iron and . Our team of quality supervisors ensures these Perforated Grills are completely inspected before delivering it to clients. Our delivered Perforated Sheets are highly tensile in strength and durable.


Features:


  • Rust Proof
  • Abrasion Resistant
  • Dimensionally Accurate
  • Available in all kind of metals.




Other Information
