GEMTECH -Series 3000 Digital Pressure Gauge Range: 0 to 0.125 KPA

GEMTECH -Series 3000 Digital Pressure Gauge Range: 0 to 0.125 KPA

GEMTECH _ Series 3000 Digital Pressure Gauge Range 0 to 1.000 KPA Thank You For Choosing Our Digital Differential Pressure Gauge.Please Read This Manual Before Using If You Have Any Doubt About The Use,Please Feel Free To Contact Our Company,We Are Quite Willing To Serve You MATTERS NEEDING ATTENTION Please Do Not Modify The Internal Wiring And Lines Of The Digital Differential Pressure Gauge By Your Self Please Choose a Safe Area To Install The Digital Differential Pressure Gauge To Prevent High Temperature And Avoid Splashing Of Moisture And Water Droplets When The Battery Voltage Is Low,Please Replace The Battery In Time RELEVANT MATTERS BEFORE USE DELIVERY INSPECTION Each Differential Pressure Transmitter is Subject to Strict Quality Control Before Delivery.Product Packaging Adopts Enhanced Anti-Collision Treatment. After Opening The Box,Please Check Whether The Product Caused Damage During The Transportation APPLICATIONS AND FEATURES

• Using High-Precision Sensors And Digital Technology,Can Detect Positive Pressure,Negative Pressure Or Differential Pressure
• Can Be Widely Used To Measure The Pressure Of Fans And Blowers Filter Resistance Wind Speed Furnace Ventilation Pressure Drop Caused By Orifice Plates,Liquid Level In Foaming Systems And Pressure In Booster Or Hydraulic Systems
• Can Be Used On Medical Equipment To Monitor Blood And Respiratory Pressure
• Suitable For Embedded Installation,Flat Installation And Other Installation Methods

PRODUCTS SHEET

• Various Measuring Ranges
• No Moving Parts,Anti-Vibration
• Accuracy Up To ±1%FS, ±3%FS(0-60Pa),±2%FS(0-125Pa)
• Button Function:Zero Calibration,Unit Switching

STORAGE AND INSTALLATION

• The Product Should Be Kept In a Dry And Grime Free Place
• Storage Temperature:-10℃~+40℃
• Storage Humidity:0%~90%
• Vibration:20Hz: 9.8 m/s2 (1G) max;20Hz~50Hz:5.88 m/s2 (0. 6G) Max
• Avoid Storing in Corrosive Gas And Liquid Environment
• It is Best to Store It Properly Packaged On a Shelf Or Table
• If it is used in an open package and it exceeds 3 months,The ambient temperature of the storage environment should not be higher than 30 ℃.This is because when the electrolytic capacitor is stored without electricity,its characteristics are easily deteriorated when the ambient temperature is too high.Do not leave it for more than a year without electricity
• Ambient Temperature:-10~+50℃ (14~104℉)
• Ambient Relative Humidity:<90%,no frost
• Installation Height:<1000m
• On a circle with a diameter of 105mm,drill 3 holes with an average angle of 120 degrees.The hole diameter is between 3-3.2 (as shown in the picture above). Mounted on The Surface With Accessory Screws M3X8.Choose one Pair of Pressure ports to connect to the Air Tube,Pay attention to the Difference Between High and Low Pressure Ports,And Make Sure to Seal the other pair of pressure ports with On the plate that needs to be embedded,punch a hole, the diameter of the hole is between 114 and 3-114.8mm.Embed the product and install the accessory feet on the back.Then fix it on the plate with M3.5X50 self-tapping screws.Choose one of the pair of pressure ports to connect to the Airway Note the Difference Between High/Low Pressure Ports And Make Sure To Seal The Other PRODUCT PARAMETERS

Medium:Air And Non-Flammable,Non-Corrosive Gas

• Medium Temperature: 0-60°C
• Shell:ABS Engineering Plastic
• Working Environment:-20°C～+85°C
• Differential Pressure Range:a variety of Ranges.Overload 3xFS,Breaking pressure 10×FS
• Long-Term Stability:±0.1% FS/Year
• Temperature Drift Coefficient: <0.03% FS/°C
• Power Supply:4 AA Batteries / 24 VDC
• COMPLETE RANGE MODALRANGE

  CODE	UNIT & RANGE
  	PA	PA	KPA	MBAR	MM W.C	IN W.C
  1	0-60	60.00	0.060	0.600	6.000	0.250
  2	0-125	125.0	0.125	1.250	12.00	0.500
  3	0-250	250.0	0.250	2.500	25.00	1.000
  4	0-500	500.0	0.500	5.000	50.00	2.000
  5	0-750	750.0	0.750	7.500	75.00	3.000
  6	0-1000	1000	1.000	10.00	100.0	4.000
  7	0-2000	2000	2.000	20.00	200.0	8.000
  8	0-3000	3000	3.000	30.00	300.0	12.00
  9	0-5000	5000	5.000	50.00	500.0	20.00
  10	0-10000	10000	100.0	100.0	1000	10.00

OPTIONAL RANGE : ±30PA-±5000PA (0-10000PA) Additional Information:

WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221,

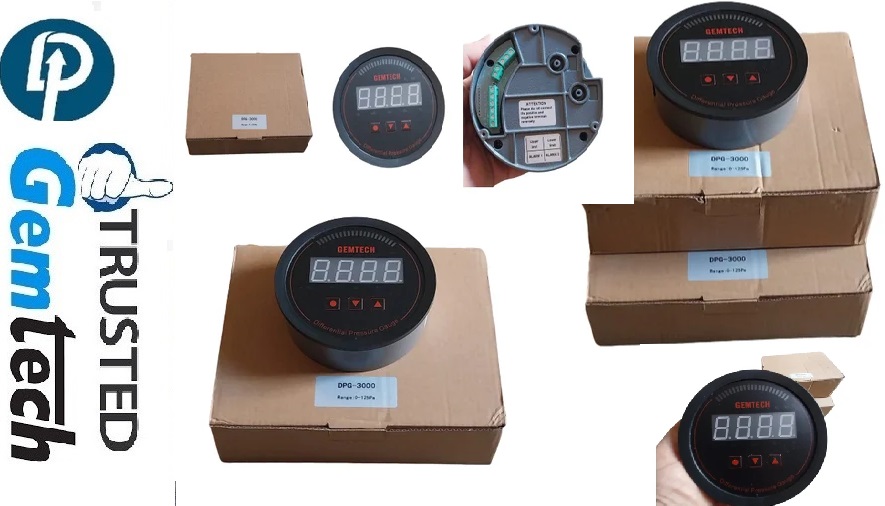

GEMTECH I Series 3000 Digital Pressure Gauge Range: 0 to 0.060 KPA

GEMTECH I Series 3000 Digital Pressure Gauge Range: 0 to 0.060 KPA

GEMTECH _ Series 3000 Digital Pressure Gauge Range 0 to 1.000 KPA Thank You For Choosing Our Digital Differential Pressure Gauge.Please Read This Manual Before Using If You Have Any Doubt About The Use,Please Feel Free To Contact Our Company,We Are Quite Willing To Serve You MATTERS NEEDING ATTENTION Please Do Not Modify The Internal Wiring And Lines Of The Digital Differential Pressure Gauge By Your Self Please Choose a Safe Area To Install The Digital Differential Pressure Gauge To Prevent High Temperature And Avoid Splashing Of Moisture And Water Droplets When The Battery Voltage Is Low,Please Replace The Battery In Time RELEVANT MATTERS BEFORE USE DELIVERY INSPECTION Each Differential Pressure Transmitter is Subject to Strict Quality Control Before Delivery.Product Packaging Adopts Enhanced Anti-Collision Treatment. After Opening The Box,Please Check Whether The Product Caused Damage During The Transportation APPLICATIONS AND FEATURES

• Using High-Precision Sensors And Digital Technology,Can Detect Positive Pressure,Negative Pressure Or Differential Pressure
• Can Be Widely Used To Measure The Pressure Of Fans And Blowers Filter Resistance Wind Speed Furnace Ventilation Pressure Drop Caused By Orifice Plates,Liquid Level In Foaming Systems And Pressure In Booster Or Hydraulic Systems
• Can Be Used On Medical Equipment To Monitor Blood And Respiratory Pressure
• Suitable For Embedded Installation,Flat Installation And Other Installation Methods

PRODUCTS SHEET

• Various Measuring Ranges
• No Moving Parts,Anti-Vibration
• Accuracy Up To ±1%FS, ±3%FS(0-60Pa),±2%FS(0-125Pa)
• Button Function:Zero Calibration,Unit Switching

STORAGE AND INSTALLATION

• The Product Should Be Kept In a Dry And Grime Free Place
• Storage Temperature:-10℃~+40℃
• Storage Humidity:0%~90%
• Vibration:20Hz: 9.8 m/s2 (1G) max;20Hz~50Hz:5.88 m/s2 (0. 6G) Max
• Avoid Storing in Corrosive Gas And Liquid Environment
• It is Best to Store It Properly Packaged On a Shelf Or Table
• If it is used in an open package and it exceeds 3 months,The ambient temperature of the storage environment should not be higher than 30 ℃.This is because when the electrolytic capacitor is stored without electricity,its characteristics are easily deteriorated when the ambient temperature is too high.Do not leave it for more than a year without electricity
• Ambient Temperature:-10~+50℃ (14~104℉)
• Ambient Relative Humidity:<90%,no frost
• Installation Height:<1000m
• On a circle with a diameter of 105mm,drill 3 holes with an average angle of 120 degrees.The hole diameter is between 3-3.2 (as shown in the picture above). Mounted on The Surface With Accessory Screws M3X8.Choose one Pair of Pressure ports to connect to the Air Tube,Pay attention to the Difference Between High and Low Pressure Ports,And Make Sure to Seal the other pair of pressure ports with On the plate that needs to be embedded,punch a hole, the diameter of the hole is between 114 and 3-114.8mm.Embed the product and install the accessory feet on the back.Then fix it on the plate with M3.5X50 self-tapping screws.Choose one of the pair of pressure ports to connect to the Airway Note the Difference Between High/Low Pressure Ports And Make Sure To Seal The Other PRODUCT PARAMETERS

Medium:Air And Non-Flammable,Non-Corrosive Gas

• Medium Temperature: 0-60°C
• Shell:ABS Engineering Plastic
• Working Environment:-20°C～+85°C
• Differential Pressure Range:a variety of Ranges.Overload 3xFS,Breaking pressure 10×FS
• Long-Term Stability:±0.1% FS/Year
• Temperature Drift Coefficient: <0.03% FS/°C
• Power Supply:4 AA Batteries / 24 VDC
• COMPLETE RANGE MODALRANGE

  CODE	UNIT & RANGE
  	PA	PA	KPA	MBAR	MM W.C	IN W.C
  1	0-60	60.00	0.060	0.600	6.000	0.250
  2	0-125	125.0	0.125	1.250	12.00	0.500
  3	0-250	250.0	0.250	2.500	25.00	1.000
  4	0-500	500.0	0.500	5.000	50.00	2.000
  5	0-750	750.0	0.750	7.500	75.00	3.000
  6	0-1000	1000	1.000	10.00	100.0	4.000
  7	0-2000	2000	2.000	20.00	200.0	8.000
  8	0-3000	3000	3.000	30.00	300.0	12.00
  9	0-5000	5000	5.000	50.00	500.0	20.00
  10	0-10000	10000	100.0	100.0	1000	10.00

OPTIONAL RANGE : ±30PA-±5000PA (0-10000PA) Additional Information:

WhatsApp No.9871014210,WhatsApp No.9811065204,WhatsApp No.8376899729,WhatsApp No.8368888047,WhatsApp No.9268631221

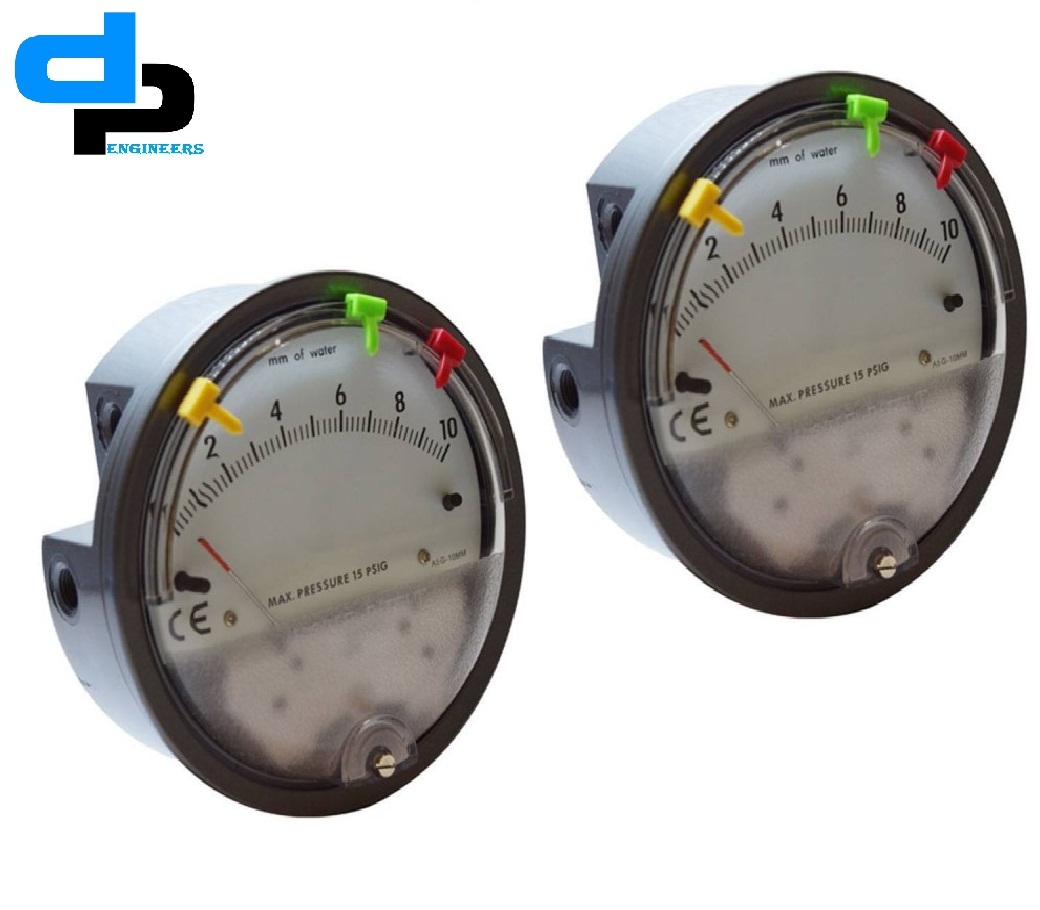

AEROSENSE DP Gauge

AEROSENSE DP Gauge

Aerosense Differential Pressure Indicator

Aerosense Differential Pressure Indicator is demanded for its impeccable qualities and features. It is extensively demanded in the applications areas where HVAC systems are installed to resolve the problem of humidity & temperature control. It is suitable for energy optimization and therefore widely used for the measurement of HVAC duct pressure. Along with the prcised operations it has integrated high speed differential pressure sensor that provide accurate results in a significant manner.
Features:
Integrated red LED seven segment display
Differential pressure sensor
Stainless steel at the back

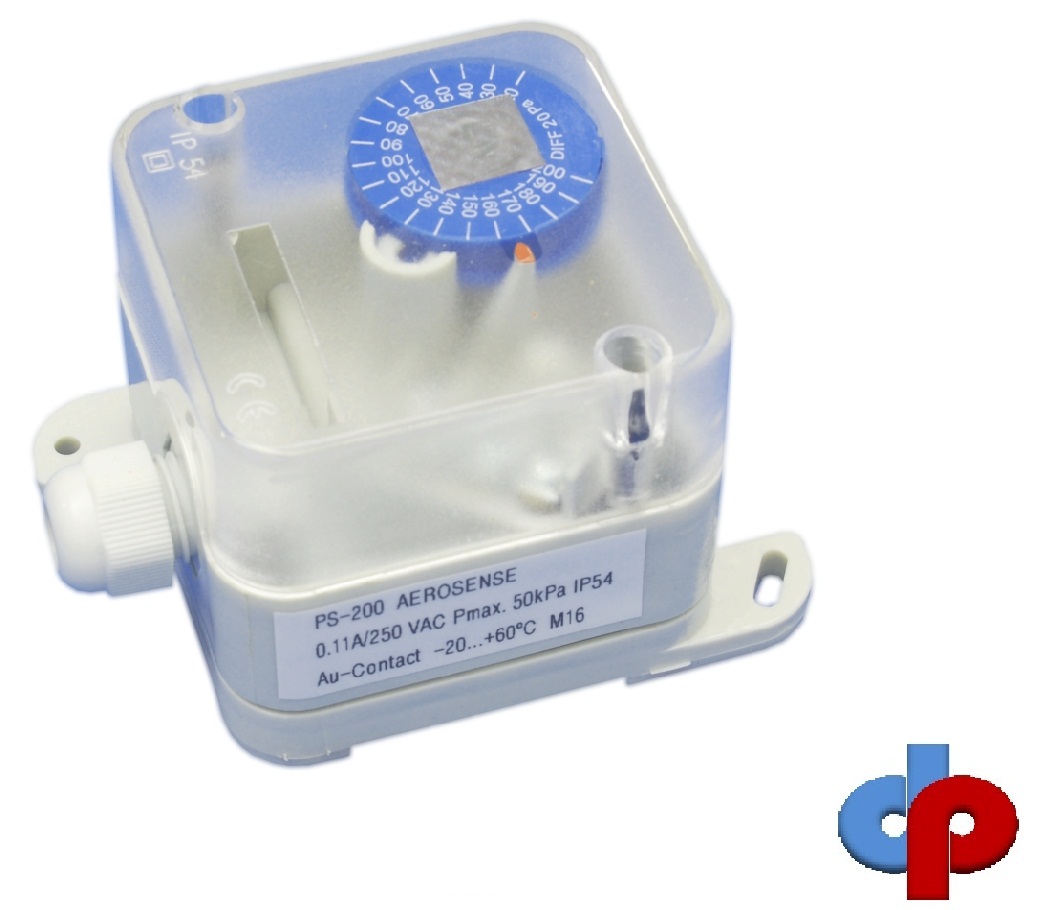

Aerosense Differential Pressure Switch

Aerosense Differential Pressure Switch
the series of pressure switches Aerosense Differential Pressure Switch is the most updated one.Generally, they are applied in the fan, blower and filter monitoring as well as to measure the pressure and flow of gases & liquids in different industries. Enabled with the effective mechanism these switches have high-tech features & specifications such as selectable switching point adjustment and measurement unit facility in PA.Several additional accessories are also provided for the ease of users that primarily include metallic duct connectors,plastic dust connectors, and fixing screws.

Features:
Pressure and flow monitoring
Two fixing screws
Metallic duct connectors

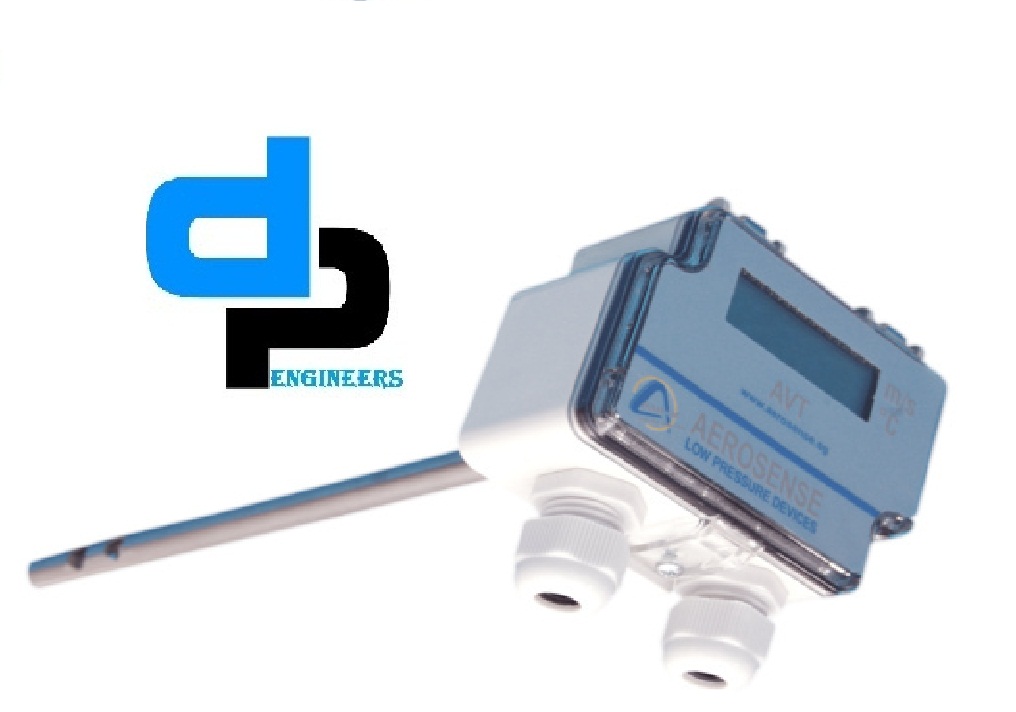

Aerosense Air Velocity Transmitter

Aerosense Air Velocity Transmitter

Excellent in quality & performance Aerosense Air Velocity Transmitter is mainly constructed to use in the sphere of HVAC/R systems. This is the latest series available in the market for air velocity transmitter which is capable to measure air velocity & temperature in a prominent manner. Enabled with the superlative applications this model of AVTs is designed with a duct mount probe and adjustable collar which is suitable for round or rectangular duct. Additionally, its dimensions are suitable hence it is easy to adjust in the large as well as small space.

Features:

• Adjustable immersion length with flange
• Standard air velocity transmitter
• LCD Backlight display

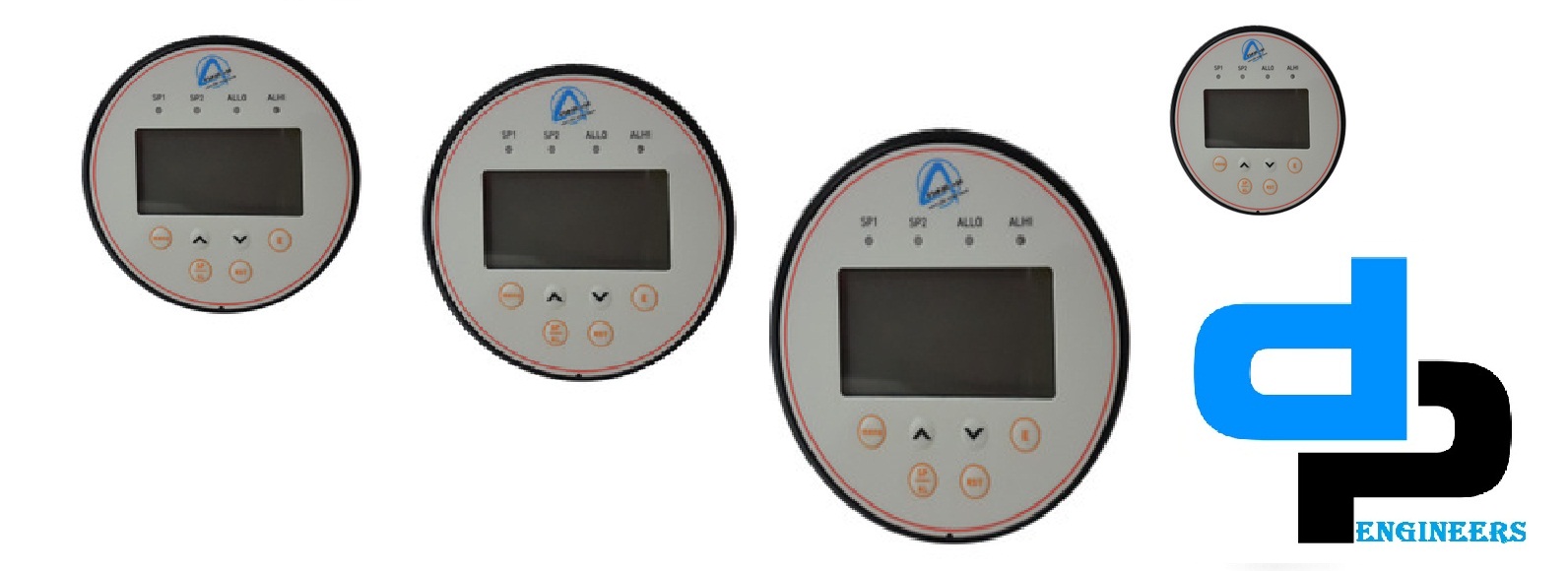

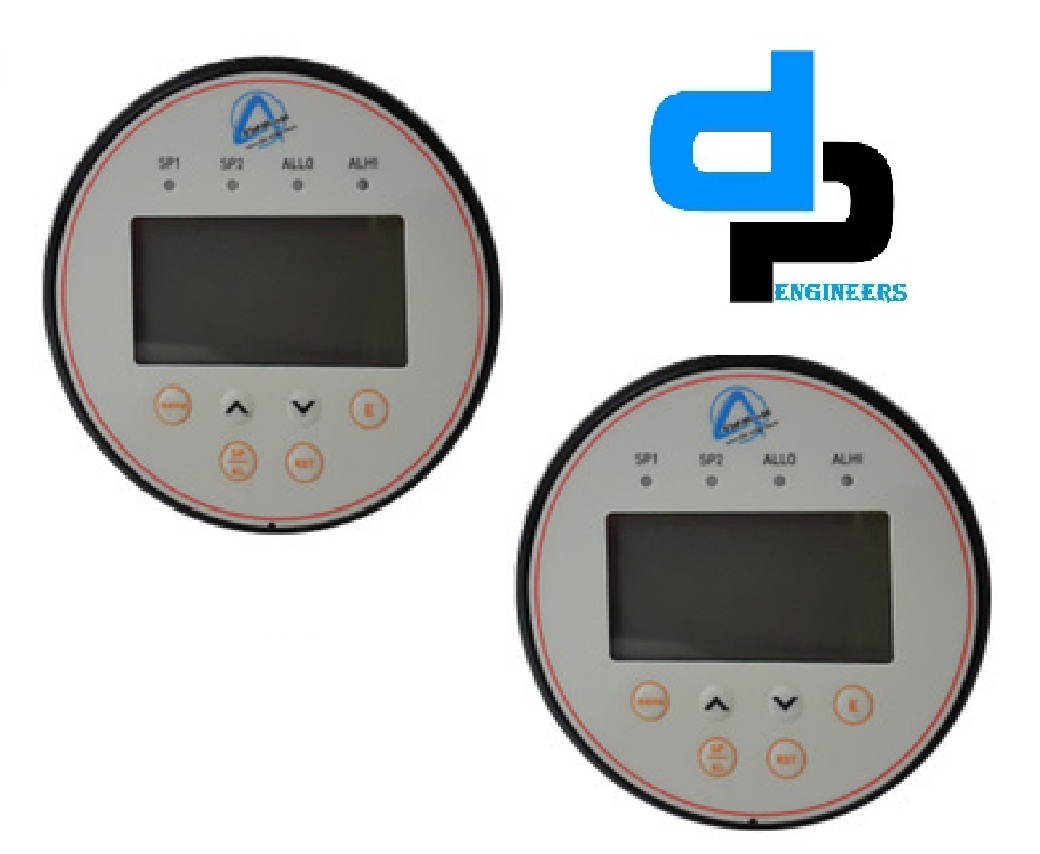

Aerosense Differential Pressure Controller

Aerosense Differential Pressure Controller

 It is recommended that industrialists dealing in the domain of pressure control & temperature drift should make the selection of the all new range of Aerosense Differential Pressure Controller. The device is a type of differential pressure indicator that comes with advanced & standard accessory items. It is also enabled with the zero point adjustment facility and high point adjustment (span) that is provided to deliver the excellent results as per the desired levels of quality in HVAC, fan & blower industries.
Features:

• Better accuracy
• Highest pressure range
• Protection standard conformance
